Speaker drivers are the components of a speaker system that convert electrical signals into sound waves. They are the heart of any speaker system and come in different sizes, materials, and components depending on their application.
Let’s take a look at the role the driver plays in relation to the other components of a speaker:
The speaker and its components
If we break it down, a speaker is an electroacoustic device that converts electrical signals into sound waves. The main components of a speaker are the driver(s), crossover network, enclosure, and terminals.
Speaker drivers are made up of several components, including the cone, voice coil, spider, magnet, and basket. The cone is the visible part of the driver that moves back and forth to produce sound waves. The voice coil is a coil of wire that moves within a magnetic field, generating a force that moves the cone. The spider is a flexible component that holds the voice coil in place. The magnet creates the magnetic field that interacts with the voice coil, and the basket holds all the components together.
Driver(s): The driver is the part of the speaker that produces sound waves. A typical speaker has at least one driver, but it can have multiple drivers of different sizes and types to cover different frequency ranges. As mentioned in the previous answer, the most common types of drivers are woofers, mid-range drivers, and tweeters. Each driver consists of several components, including the cone, voice coil, spider, magnet, and basket.
Crossover Network: The crossover network is an electronic component that divides the incoming audio signal into different frequency ranges and sends them to the appropriate driver. It is essential for ensuring that each driver receives the frequencies it is designed to reproduce. A typical speaker has a crossover network that separates the signal into low, mid, and high-frequency components.
Enclosure: The enclosure is the box or cabinet that houses the driver(s) and the crossover network. Its main function is to prevent sound waves from the front and back of the driver from interfering with each other. The enclosure also controls the radiation pattern and frequency response of the speaker, which affects its sound quality. Enclosures can come in various shapes, sizes, and materials, and their design can be critical to achieving optimal sound quality.
Terminals: The terminals are the connectors on the back of the speaker that allow it to be connected to an amplifier or receiver. They can be binding posts, spring clips, or other types of connectors, and they typically accept bare wire, spade connectors, or banana plugs.
Types of Drivers
The three most common types of speaker drivers are woofers, mid-range drivers, and tweeters. Woofers are designed to reproduce low-frequency sounds, while mid-range drivers are responsible for the midrange frequencies, and tweeters are used for high-frequency sounds.
The materials used in speaker drivers vary depending on the application and the manufacturer. Common materials include paper, plastic, metal, and composite materials. Paper is the most common material used for cones, while plastics are used for some tweeters and mid-range drivers. Metal drivers are used for high-end speakers.
The size of a speaker driver also varies depending on the application. Generally, larger drivers produce lower frequencies, while smaller drivers produce higher frequencies. Woofers can range in size from 6 inches to 18 inches, while mid-range drivers are typically 3 inches to 6 inches. Tweeters can be as small as 0.5 inches or as large as 1 inch or more.
What Determines Driver Size & Type
The size of a speaker driver has a significant impact on its frequency response. Generally, larger drivers produce lower frequencies, while smaller drivers produce higher frequencies.
This is because the size of the driver determines how much air it can move, which affects the amount of bass it can produce. Larger drivers can move more air, which makes them better suited for reproducing low frequencies such as bass and sub-bass. Smaller drivers, on the other hand, can’t move as much air, which makes them better suited for reproducing higher frequencies such as midrange and treble.
For example, a typical 8-inch woofer is designed to reproduce frequencies between 40 Hz and 2,500 Hz, while a 1-inch tweeter is designed to reproduce frequencies between 2,500 Hz and 20,000 Hz. A 3-inch midrange driver is designed to reproduce frequencies between 500 Hz and 5,000 Hz.
The size of the driver alone doesn’t determine its frequency response; it’s also affected by other factors, such as the driver’s material, construction, and the enclosure it’s mounted in. For example, a 6-inch woofer mounted in a sealed enclosure will have a different frequency response than a 6-inch woofer mounted in a ported enclosure.
The size of a speaker driver affects its frequency response because larger drivers can move more air and are better suited for low-frequency reproduction, while smaller drivers are better suited for high-frequency reproduction. However, other factors, such as the driver’s material, construction, and enclosure, also affect its frequency response.
Speaker Driver Materials
Speaker drivers can be made from a variety of materials, each of which can have a significant impact on the sound quality of the speaker. The most common materials used for speaker drivers are:
Paper: Paper is a common material used for the cones of mid-range drivers and woofers. It is lightweight, inexpensive, and produces a warm, natural sound. However, paper cones can be prone to distortion and can deteriorate over time if exposed to moisture.

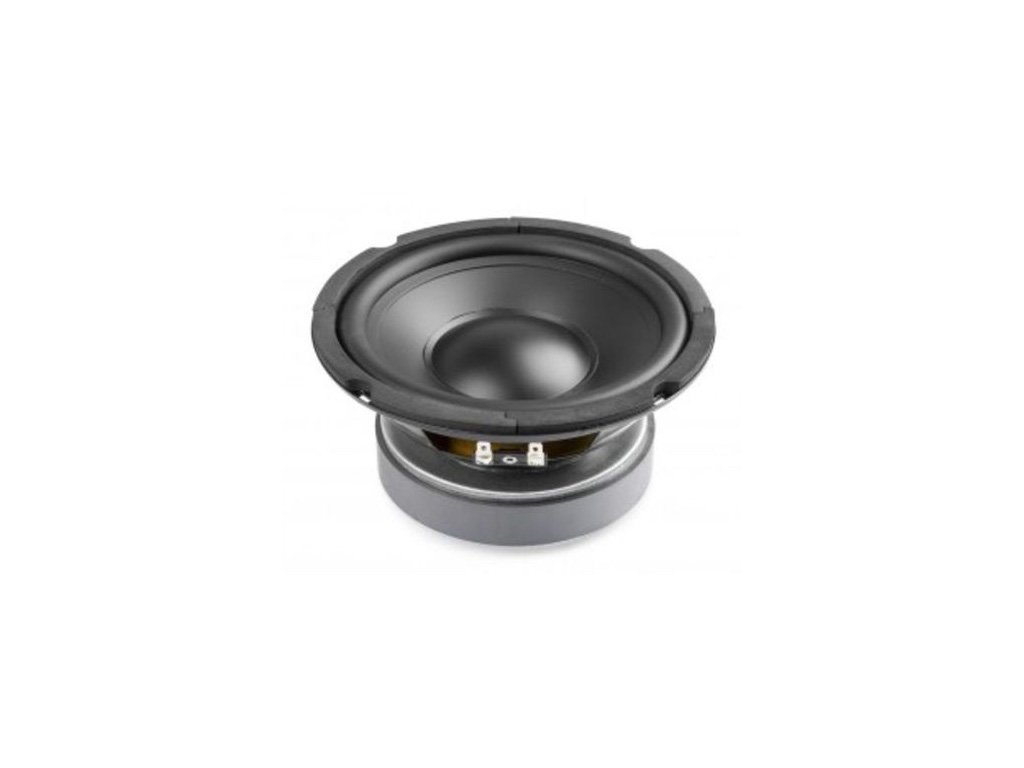

Polypropylene: Polypropylene is a thermoplastic polymer that is commonly used for the cones of mid-range and woofer drivers. It is lightweight, durable, and has good damping properties, which can reduce distortion. Polypropylene cones can produce a balanced sound with good midrange and bass response.
Kevlar: Kevlar is a synthetic material that is known for its strength and durability. It is often used for the cones of mid-range and woofer drivers because it can produce a tight, punchy bass response and a smooth midrange.
Aluminum: Aluminum is a lightweight, stiff metal that is commonly used for the cones of mid-range and woofer drivers. It can produce a clean, detailed sound with good midrange and bass response.
Titanium: Titanium is a lightweight, strong metal that is often used for the domes of tweeter drivers. It can produce a bright, detailed sound with an excellent high-frequency response.
Silk (Silk Dome): Silk is a natural material that is commonly used for the domes of tweeter drivers. It can produce a smooth, warm sound with an excellent high-frequency response.
Beryllium: Beryllium is a lightweight, rigid metal that is sometimes used for the domes of high-end tweeter drivers. It can produce an extremely detailed, transparent sound with an exceptional high-frequency response.
What to look for in a speaker driver
When choosing a speaker driver, there are several important factors to consider that can affect the overall sound quality of the speaker. Some of the key things to look for when choosing a speaker driver include the following:
Frequency Response: The frequency response of a speaker driver is a measure of the range of frequencies that it can accurately reproduce. Look for a driver with a wide frequency response that covers the full range of human hearing (20 Hz to 20 kHz) with a relatively flat response curve. This will ensure that the speaker can reproduce all types of music and sound accurately.
Sensitivity: The sensitivity of a speaker driver is a measure of how much sound it produces when given a certain amount of power. Look for a driver with high sensitivity, as this will allow it to produce more sound with less power, resulting in a more efficient speaker.
Power Handling: The power handling of a speaker driver is the amount of power it can handle without distortion or damage. Look for a driver with a high power handling rating that matches the power output of your amplifier or receiver.
Impedance: The impedance of a speaker driver is a measure of how much electrical resistance it has. Look for a driver with an impedance that matches the output impedance of your amplifier or receiver to ensure proper power transfer and prevent damage to the equipment.
Construction Quality: Look for a driver with a sturdy, well-built construction that is designed to minimize resonance and distortion. High-quality materials such as polypropylene, Kevlar, or aluminum can improve the durability and sound quality of the driver.
Size: The size of the driver will affect its frequency response and overall sound quality. Consider the size of your room and the type of music you listen to when choosing a driver size. Larger drivers produce more bass, while smaller drivers produce more treble.
When choosing a speaker driver, look for a driver with wide frequency response, high sensitivity, appropriate power handling, matching impedance, high-quality construction, and an appropriate size for your listening environment and music preferences.
